2023 Academic Lab Promotion
For a limited time only, buy a two mode SpectraMax® Mini and get Luminescence or Fluorescence for FREE

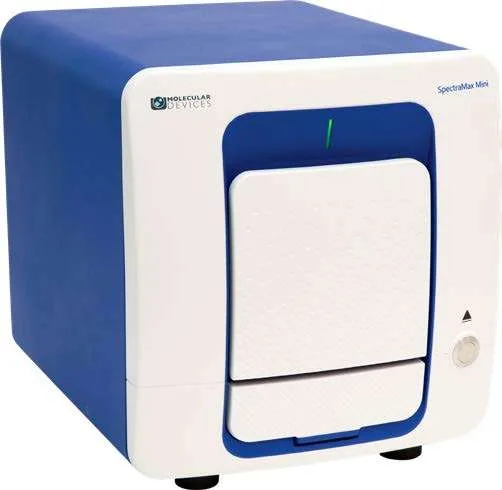

The Spectra Max® Mini Multi-Mode Microplate Reader offers a budget friendly solution that gives you exactly what you need, when you need it. With three modes of detection for UV-Vis, absorbance, fluorescence and luminescence, the Spectramax® Mini reader is user upgradeable – from 2 to 3 modes, providing researchers with a versatile instrument that does not compromise on sensitivity or performance. Included Softmax®’Pro Software enables rapid data generation and analysis helping you achieve more in less time.
Explore how you can future-proof your research. Contact Pete on +45 25 57 38 76, or use the email icon below for more information. But hurry! Offer valid from 15/03/2023–15/06/2023.
KEY FEATURES
Achieve more in less time.
Improved sensitivity across
entire spectrum
Flash assays captured easily
using SmartInject™ Technology
Pipette errors eliminated for true OD measurements with no temperature dependency
Super cooled PMT for improved
luminescence range
Library of user-configured applications to choose from
Automation-compatible options
Technical specifications – SpectraMax Mini reader
General specifications
| Dimensions (in.) | 15.75 (L) x 12.60 (W) x 13.78 (H) |
| Wavelength selection | 40 (L) x 32 (W) x 35 (H) |
| Weight | ≤ 40 lbs (18 kg) |
| Power requirement | External 24V DC power supply compatible with 100–240V AC @50–60 Hz 160W maximum consumption |
| Robotic compatible | Yes |
General Performance
| Plate formats | 6, 12, 24, 48, 96, 384-well plates ANSI/SLAS |
| Light source | Xenon flash lamp |
| Reading capabilities | Microplates, cuvettes (via adapter) |
| Detectors | Photomultiplier Tube and Photodiode |
| Shaking | Linear, orbital, and double orbital |
| Temperature control | 4°C above ambient to 45°C |
| Temperature uniformity | ±1°C at 37°C |
| Temperature accuracy | ±2°C at 37°C |
| Spectral scanning | Abs |
| Endpoint reading | Abs, FI, Lum |
| Kinetic reading | Abs, FI, Lum |
| Well scanning | Over 20 by 20 |
Absorbance photometric performance
| Wavelength range | 200–1000 nm |
| Wavelength selection | 1.0 nm increments |
| Wavelength bandwidth | ≤ 5 nm full width half maximum |
| Wavelength accuracy | ± 2 nm across wavelength range |
| Wavelength precision (repeatability) | ± 0.2 nm |
| Photometric range | 0–4.0 OD |
| Photometric resolution | 0.001 OD |
| Photometric accuracy, linearity | < ±0.006 OD ±1.0%, 0–3 OD |
| Photometric precision (repeatability) | < ±0.003 OD ±1.0%, 0–3 OD |
| Stray light | ≤ 0.05% at 230 nm |
Fluorescence intensity performance
| Wavelength range | 250–850 nm |
| Dynamic range | 6 decades |
| Sensitivity (fluorescein) | 1 pM |
Luminescence performance
| Wavelength range | 300–650 nm |
| Dynamic range | 7 decades |
| Sensitivity (ATP) | 2 pM |
| Cross-talk | <0.1% (white 96-well half-area microplate) |
*Custom solution and sale is subject to our Custom Product Purchase. Terms available at www.moleculardevices.com/custom-products-purchase-terms. Price, time to deliver, and specifications will vary based on mutually agreed technical requirements.
